KOSTAL expands Multi Device Control (MDC)

The software update integrates further inverters, enhances consumption visualisation and enables centralised control of up to four MDC clients – as standard and at no extra cost.

KOSTAL is further expanding the capabilities of its Multi Device Control (MDC) system. With software update 3.07.00.25789, the company is enhancing the central networking and control of compatible devices within a photovoltaic system.

As well as the integration of further inverters, installers and system operators benefit from a system-wide Modbus TCP interface, enhanced consumption visualisation and additional functions for monitoring the network of devices.

Multi Device Control is already included as standard in the PLENTICORE G3 and does not require any additional paid activation.


An overview of the key new features

Further inverters integrated

With this update, the PIKO CI G1 and G2 commercial inverters, as well as the PLENTICORE BI 25 G3, can be integrated as MDC clients, visualised and centrally controlled in accordance with the supported functions.

Up to four MDC clients

An MDC host can now group up to four compatible clients within the local network. This allows different inverters and other supported devices to be connected to form a single system.

Centralised Modbus-TCP control

The entire multi-device system can be controlled via a central Modbus-TCP interface. Control commands are transmitted to the MDC host, which distributes the relevant instructions to the connected clients.

Advanced consumption visualisation

Compatible power meters can be used to monitor additional loads or entire circuits and visualise them on the MDC Host’s web server. The generation from additional systems, such as a balcony power plant, can also be displayed.

Devices supported include those from Shelly and TQ-Systems, as well as the KOSTAL Smart Energy Meter (KSEM). The specific range of functions depends on the individual device and the software version.

Improved system monitoring

If a client integrated via the Device Manager fails on the network, the MDC host detects the communication fault and reports it using event code EC8005.

Dynamic electricity tariffs in further markets

With this software update, integrated support for dynamic electricity prices is being extended to the Baltic states.


Multi Device Control – intelligently networking devices

The basic principle remains the same: a PLENTICORE G3 acts as the MDC host, handling the central networking, visualisation and control of compatible devices.

In addition to further inverters, the new ENECTOR G2 wallbox as well as additional loads and generators can be integrated via compatible power meters.

Set-up is carried out via the integrated device manager in the host inverter’s web server.

The benefits:

  • Centralised control of compatible inverters
  • Direct integration of the ENECTOR G2, including the supported convenience features
  • Visualisation of additional loads and generation sources
  • Support for the requirements under Section 9 of the EEG and Section 14a of the EnWG in conjunction with compatible control and metering technology
  • Simple networking and configuration via the MDC host

All the MDC functions mentioned are included as standard – with no additional charge for activation.


Multi Battery Control – control multiple battery storage systems together

For PV systems with multiple PLENTICORE G3 units, each with a connected battery storage system, KOSTAL offers the Multi Battery Control function extension (subject to a fee).

This enables the overarching coordination of multiple battery systems within the MDC network. The host takes over central control, whilst the client inverters continue to communicate independently with their respective battery management systems.

The charging and discharging power is intelligently coordinated with the battery systems to make efficient use of the available storage capacity.

Activating Multi Battery Control costs a one-off fee of 1 PLENTICOIN and is carried out exclusively on the host inverter. No additional Multi Battery Control activation is required for the client inverters. Any necessary activations of the respective battery functions remain unaffected by this.

In backup mode, only the battery system connected to the MDC host is used.


Simple setup via the Device Manager

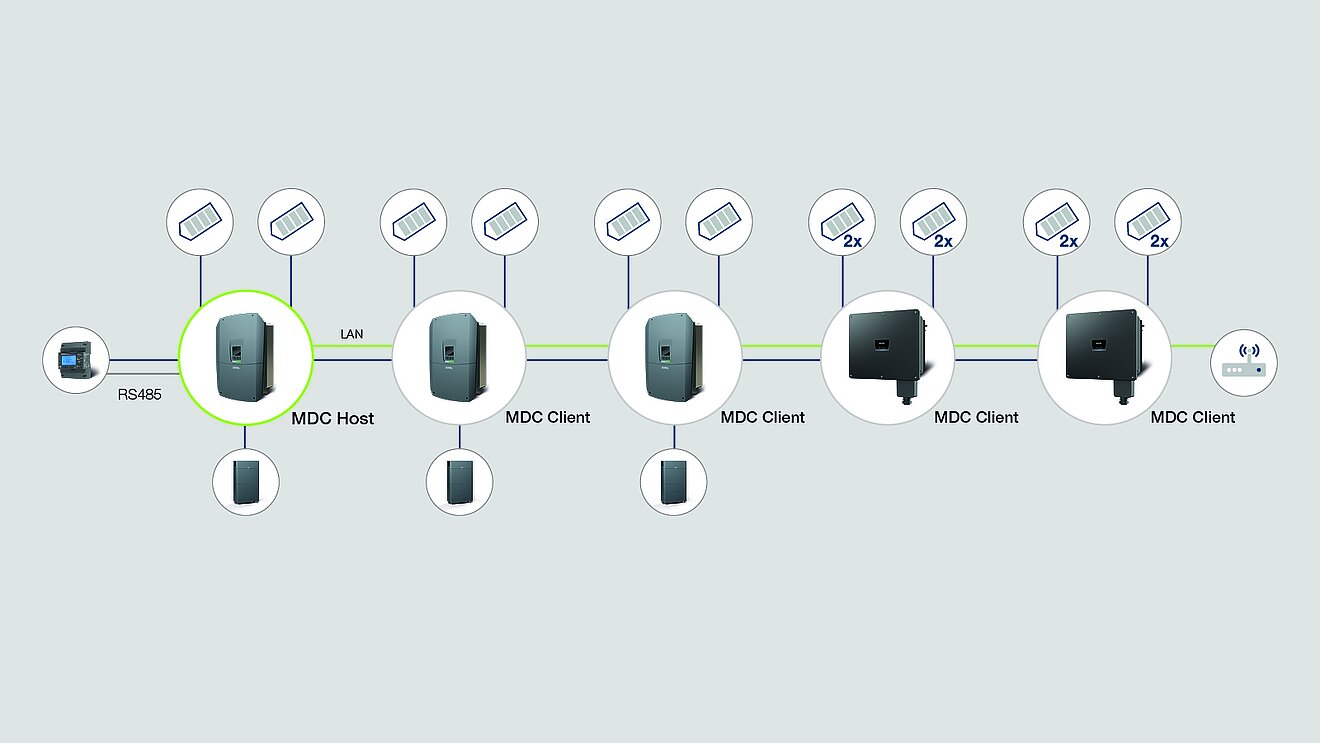

Communication between the MDC devices takes place via the local network. The energy meter is connected to the host via RS485, whilst the clients communicate via LAN.

During initial commissioning, the PLENTICORE G3 is set up as the MDC host. Compatible devices can then be added and configured via the Device Manager in the web server.

This allows even more complex system configurations to be managed centrally – without the need for additional hardware to network the MDC devices.


KOSTAL Multi Device Control: networked as standard, flexibly expandable

Through the continuous development of Multi Device Control, KOSTAL is creating additional possibilities for the networking and control of modern photovoltaic systems.

Whether it’s additional inverters, the ENECTOR G2 or extra loads and generators: MDC connects compatible devices to form an intelligent, integrated system.

Multi Device Control connects devices – as standard and free of charge. Multi Battery Control extends the possibilities to include the coordinated control of multiple battery storage units.

Software update 3.07.00.25789 is available in the download section of the KOSTAL Solar Electric website.
